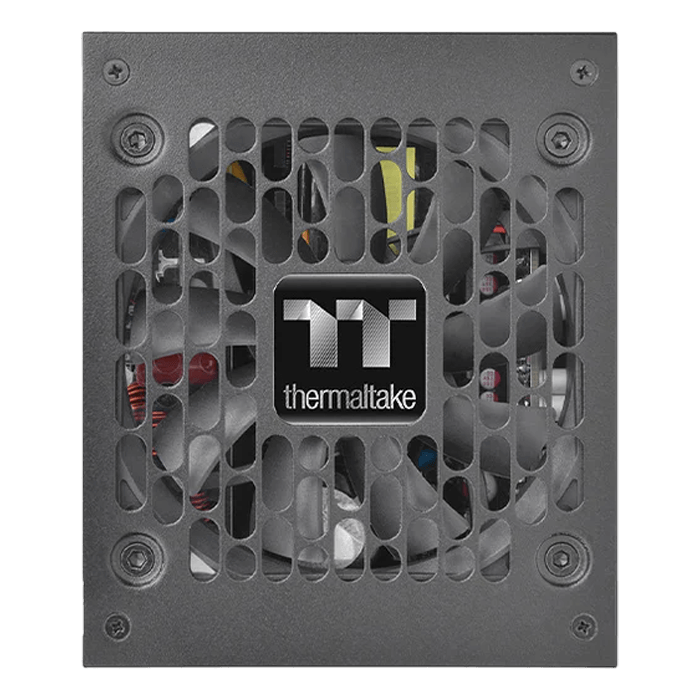

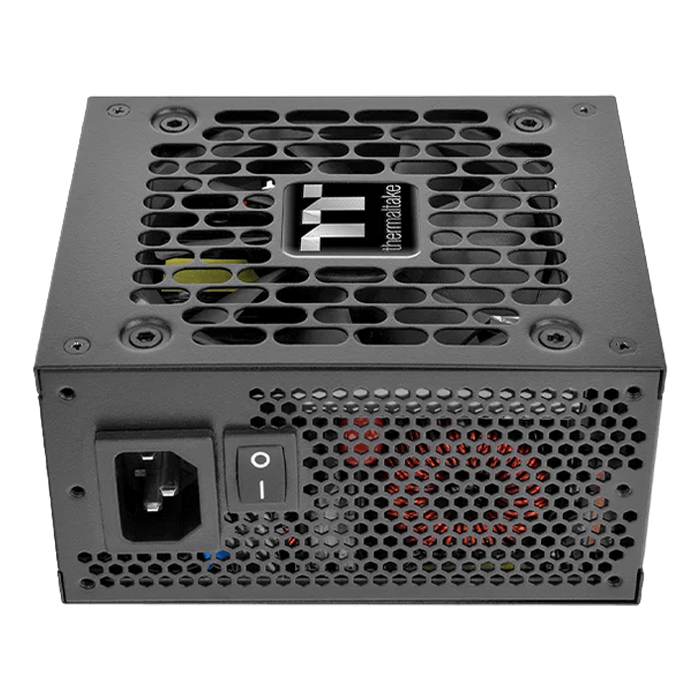

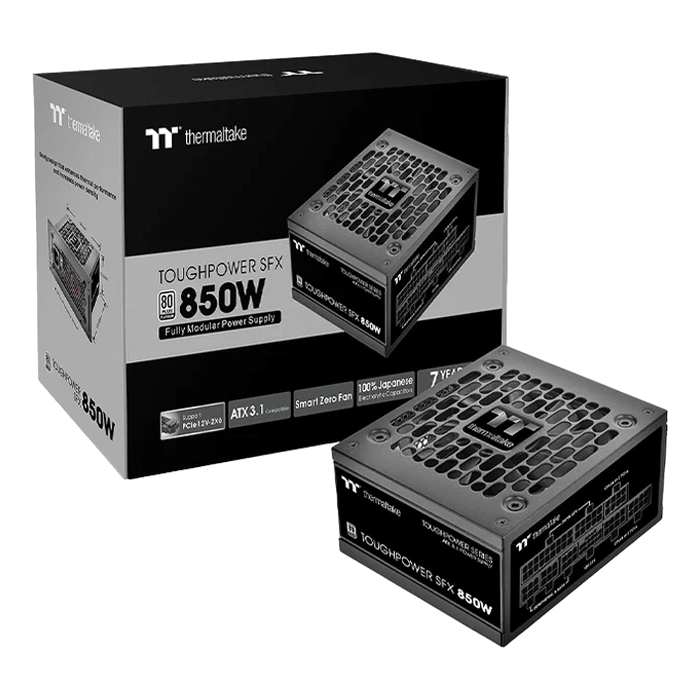

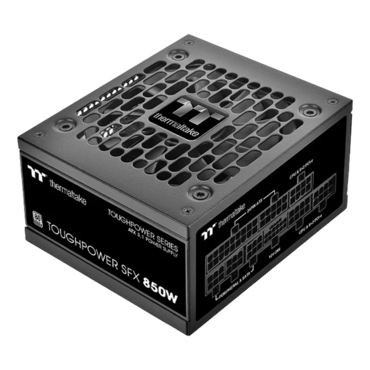

Toughpower SFX-0850AH8FLP, 80 PLUS Platinum 850W, Fully Modular, SFX Power Supply
Compact Power, Limitless Performance
The Toughpower SFX Platinum series is built to support next-gen hardware, meeting the latest Intel SFX 12V 4.1 and ATX 12V 3.1 standards. With its native PCIe 12V-2x6 (12+4pin) modular interface, it efficiently powers PCIe 12+4pin graphics cards. This series not only achieves 80 PLUS Platinum efficiency but also guarantees stability, durability, and reliability.
P/N | PS-STP-0850FNFAPU-1 |
Model | SFX-0850AH8FLP |
Watts | 850W |
Color | Black |
Dimensions | 125mm(W)x63.5mm(H)x103.8mm(D) |
PFC (Power Factor Correction) | Active PFC |
Power Good Signal | 100-150 msec |
Hold Up Time | > 17msec at 80% load |
Input Current | 15A - 8A |
Input Frequency Range | 50Hz/60Hz |
Input Voltage | 100-240V~ |
Operating Temperture | 5°C to + 40°C |
Operating Humidity | 20% to 85% |
Storage Temperture | -40°C to + 55°C |
Storage Humidity | 10% to 95% |
Cooling System | 9cm FDB Fan |
Efficiency | Meet 80 PLUS® Platinum at 115Vac input. |
MTBF | 100 |
Safety Approval | CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM |

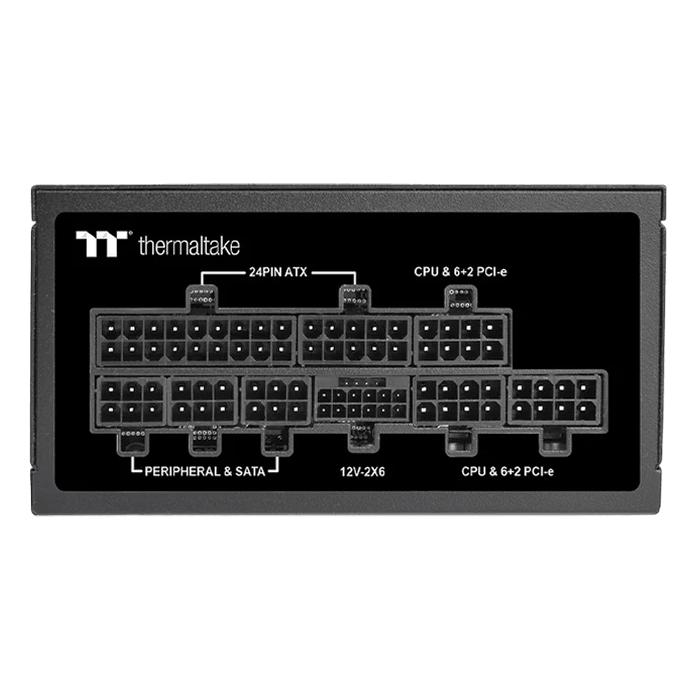

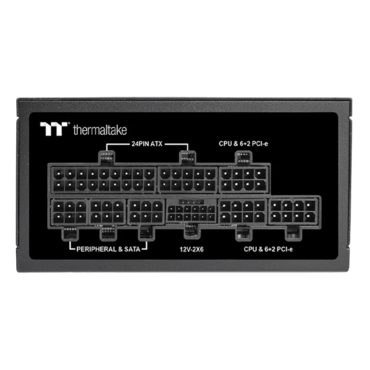

PCI-E 6+2PIN | 2 |
PCI-E 12+4PIN | 1(450W) |
