System |
Form Factor |
2U Rackmount |
Chassis Model |
TN83 |
Dimension (D x W x H) |
32.71" x 17.25" x 3.43" (831 x 438.4 x 87mm) |
Motherboard Name |
S8251GM2NE-2T # |
Motherboard Notification |
# The motherboard not sold separately |
Gross Weight |
33.1 kg (73 lbs) |
Net weight |
20.3 kg (44.8 lbs) |

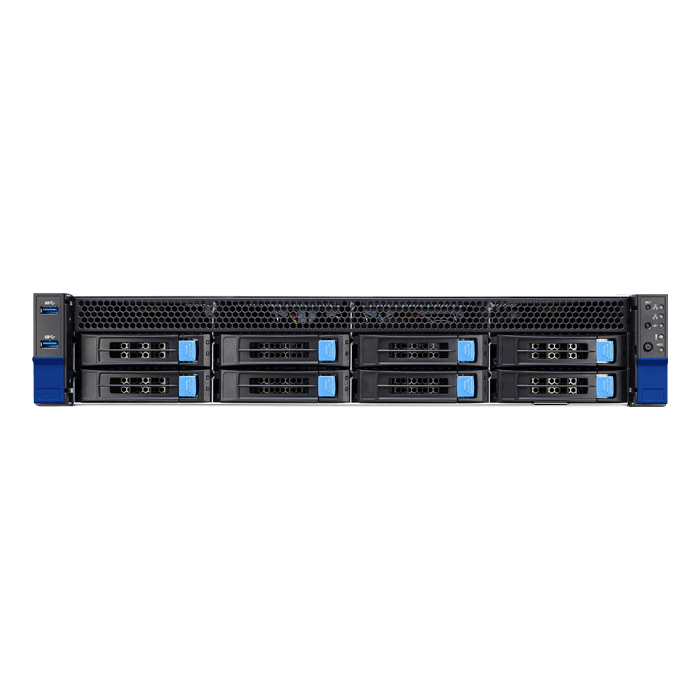

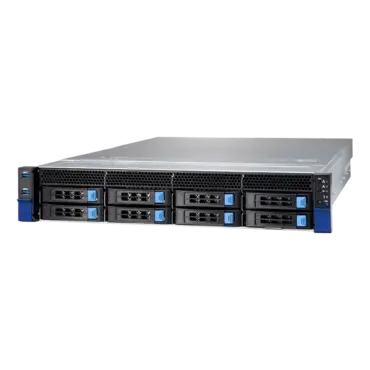

Front Panel |
Buttons |
(1) UID / (1) PWR w/ LED / (1) RST |
LEDs |
(1) HDD / (1) UID / (2) LAN / (1) System Event |
I/O Ports |
(2) USB 3.1 Gen.1 ports |
External Drive Bay |
Q'ty / Type |
(8) 3.5" Hot-swap HDD/SSDs |
Front Drive Bay Interface |
(8) SATA 6Gb/s / NVMe |
Front HDD Backplane Support |
SAS 12Gb/s /SATA 6Gb/s /NVMe |
Notification |
The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. |
System Cooling Configuration |
FAN |
(5) 8cm fans |
Power Supply |
Type |
CRPS |
Input Range |
AC 100-127V/14A / AC 200-240V/12.6A |
Frequency |
47/63 Hz |
Output Watts |
1,200 Watts (100-127Vac input) / 2,200 Watts (200-240Vac input) |
Efficiency |
PFC / 80 plus Platinum |
Redundancy |
1+1 |

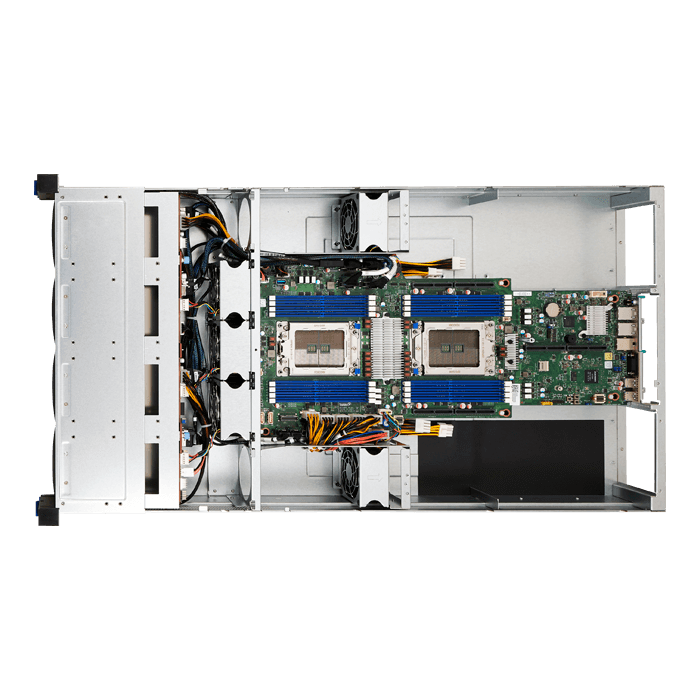

Processor |
Q'ty / Socket Type |
(2) AMD Socket SP3 |
Supported CPU Series |
(2) AMD EPYC™ 7002/7003 (with AMD 3D V-Cache™ Technology) Series Processor |
Thermal Design Power Wattage |
Max up to 240W* (cTDP) |
#Notification |
240W CPUs are supported with certain condition. Please contact Tyan Technical Support before purchasing |
Memory |
Supported DIMM Qty |
(8)+(8) DIMM slots |
DIMM Type / Speed |
DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 |
Capacity |
Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS |
Memory channel |
8 Channels per CPU |
Memory voltage |
1.2V |

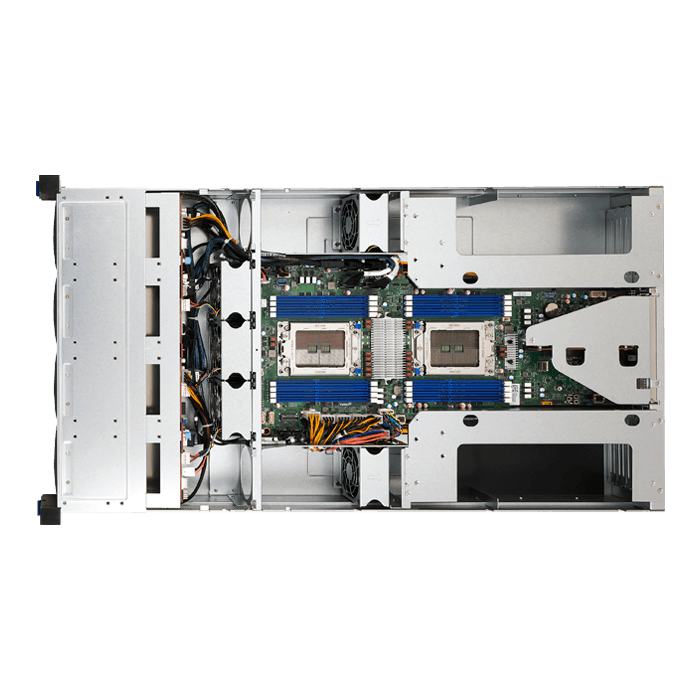

Expansion Slots |
Pre-installed TYAN Riser Card (PCIe Gen.4) |
(1) M8251T83-L32T-2F riser card for (2) FH/FL PCIe Gen.4 x16 / (1) M8251T83-R32T-2F riser card for (2) FH/FL PCIe
Gen.4 x16 / (1) M8251T83-LR32T-2L riser card for (1) HH/HL PCIe Gen.4 x16 (right) +(1) HH/HL PCIe Gen.4 x16 (left) slots
|
Physical Dimension Abbreviation |
FH/FL (Full-height / Full-length): 4.4" x 12.3" (111.2 x 312mm) |
LAN |
Q'ty / Port |
(2) 10GbE ports + (1) GbE dedicated for IPMI |
Controller |
Intel X550-AT2 |
PHY |
Realtek RTL8211E |
Storage SATA |
Connector |
(8) SATA from (2) Slim SAS (8 ports) / (2) SATA-DOM |
Controller |
Direct from AMD EPYC CPU |
Speed |
6Gb/s |
RAID |
N/A |
Storage NVMe |
Connector (U.2) |
(4) SFF-8654 for (8) front NVMe |
Graphic |
Connector type |
D-Sub 15-pin |
Resolution |
Up to 1920x1200 |
Chipset |
Aspeed AST2500 |

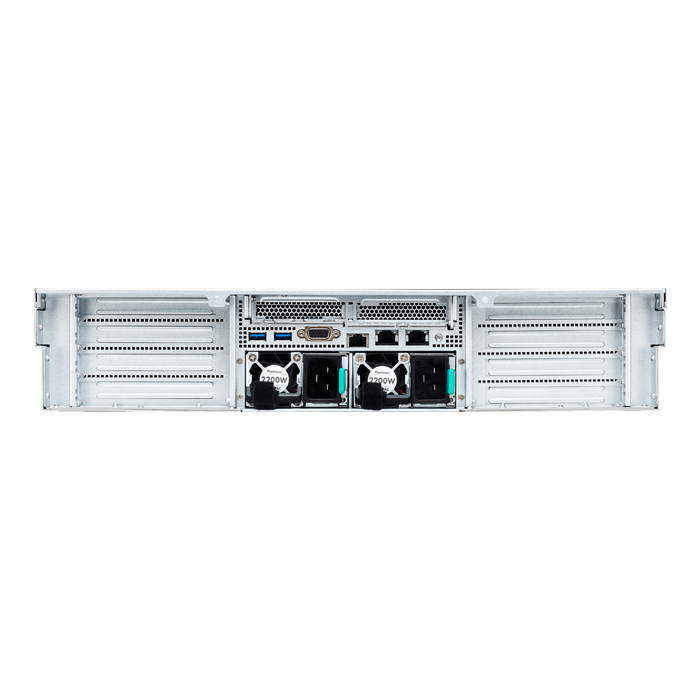

I/O Ports |
USB |
(1) USB3.1 Gen.1 port (Type-A) / (2) USB3.1 Gen.1 ports (via Cable) / (2) USB3.1 Gen.1 ports (@ rear) |
COM |
(1) header ( COM1 ) |
VGA |
(1) D-Sub 15-pin port |
RJ-45 |
(2) 10 GbE ports + (1) dedicated GbE for IPMI |
SATA |
(2) SATA-DOM connectors / (8) SATA from (2) Slim SAS connectors |
TPM (Optional) |
TPM Support |
Please refer to our TPM supported list. |
System Monitoring |
Chipset |
Aspeed AST2500 |
Temperature |
Monitors temperature for CPU & memory & system environment |
Voltage |
Monitors voltage for CPU, memory, chipset & power supply |
LED |
Over temperature warning indicator / Fan & PSU fail LED indicator |
Others |
Watchdog timer support |
Server Management |
Onboard Chipset |
Onboard Aspeed AST2500 |
AST2500 iKVM Feature |
24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub |
AST2500 IPMI Feature |
IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface |
BIOS |
Brand / ROM size |
AMI / 32MB |
Feature |
Hardware Monitor / FAN speed control automatic / Boot from USB device/PXE via LAN/Storage / Console Redirection / SMBIOS 3.0/PnP/Wake on LAN / ACPI 6.1 / ACPI sleeping states S0, S5 |
Operating Environment |
Operating Temp. |
10° C ~ 35° C (50° F~ 95° F) |
Non-operating Temp. |
- 40° C ~ 70° C (-40° F ~ 158° F) |
In/Non-operating Humidity |
90%, non-condensing at 35° C |
Regulation |
FCC (SDoC) |
Class A |
CE (DoC) |
Class A |
CB/LVD |
Yes |
RCM |
Yes |
VCCI |
Yes |
Operating System |
OS supported list |
Please refer to our AVL support lists. |
RoHS |
RoHS 6/6 Compliant |
Yes |
Package Contains |
Barebone |
(1) TN83-B8251 Barebone |
Manual |
(1) Quick Installation Guide |
