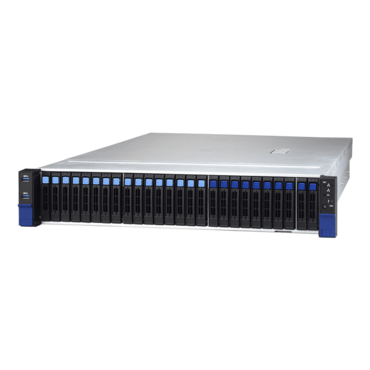

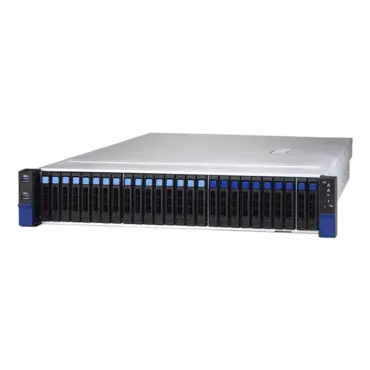

Transport SX TS65A-B8036 (B8036T65AV12E16HR), 2U, 16x NVMe + 12x SAS/SATA, 16x DDR4, 2x GbLAN, 1200W Rdt PSU
Quantity:
- SKU: 13224646
- Manufacturer: TYAN
- MPN: B8036T65AV12E16HR
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$2,665.70
| System | Form Factor | 2U Rackmount | ||
| Chassis Model | TS65A | |||
| Dimension (D x W x H) | 25.59" x 17.32" x 3.43" (650 x 440 x 87mm) | |||

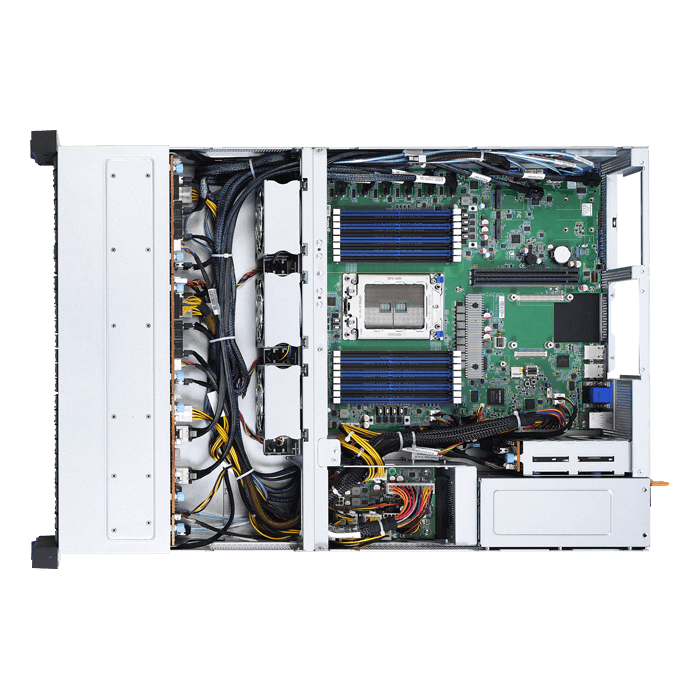

| Motherboard Name | S8036GM2NE | |||
| Gross Weight | 30 kg (66 lbs) | |||
| Net weight | 19 kg (42 lbs) | |||
| Front Panel | Buttons | (1) RST / (1) ID / (1) PWR w/ LED | ||
| LEDs | (1) HDD / (2) LAN / (1) ID / (1) System Event | |||
| I/O Ports | (2) USB 3.1 Gen1 ports | |||

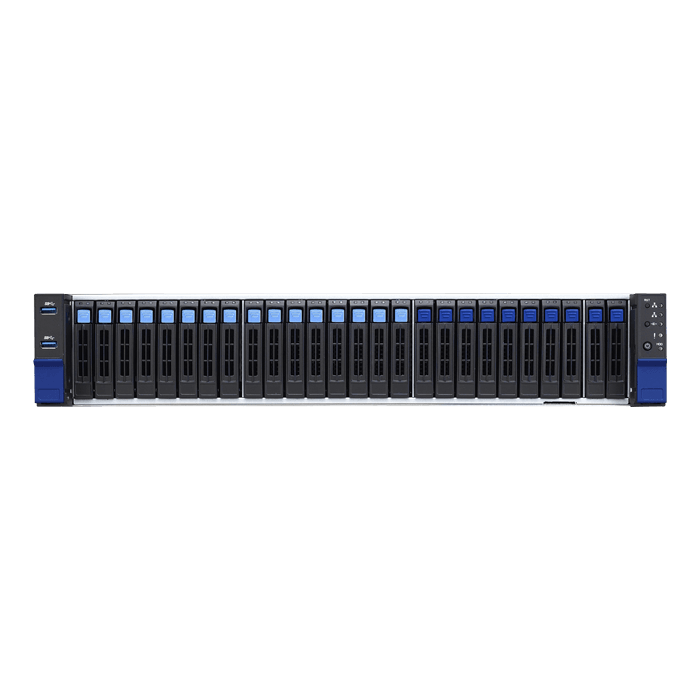

| External Drive Bay | Q'ty / Type | (26) 2.5" Hot-Swap SSD/HDD (@ front) + (2) 2.5" Hot-Swap SSD/HDD (@ rear) | ||
| HDD Backplane Support | SAS 12Gb/s /SATA 6Gb/s / NVMe | |||
| Supported HDD Interface | (10) SATA 6Gb/s + (16) NVMe (@ front) + (2) SATA 6Gb/s (@ rear) | |||
| Notification | The SAS/SATA HDD backplane is connected to onboard SATA connection by default. Please contact Tyan technical support if a discrete SAS HBA/RAID adapter is required. | |||
| System Cooling Configuration | FAN | (3) 8cm fans | ||
| Power Supply | Type | RPSU | ||
| Input Range | AC 200-240V/7A / AC 100-127V/13A | |||
| Frequency | 50-60 Hz | |||
| Output Watts | 1,000 Watts (100-127Vac input) / 1,200Watts (200-240Vac input) | |||
| Efficiency | 80 plus Platinum | |||
| Redundancy | 1+1 | |||
| Processor | Q'ty / Socket Type | (1) AMD Socket SP3 | ||
| Supported CPU Series | (1) AMD EPYC™ 7002 Series Processor | |||
| Configurable Thermal Design Power (cTDP) Wattage | Max up to 240W | |||
| Memory | Supported DIMM Qty | (16) DIMM slots | ||
| DIMM Type / Speed | DDR4 ECC RDIMM/RDIMM 3DS/LRDIMM/LRDIMM 3DS 3200 | |||
| Capacity | Up to 2,048GB RDIMM / 4,096GB LRDIMM 3DS | |||
| Memory channel | 8 Channels per CPU | |||
| Memory voltage | 1.2V | |||
| Expansion Slots | PCI-E | (2) PCI-E Gen4 x8 slots (HH / HL w/ tall bracket) / (4) PCI-E Gen4 x8 slots (FH / HL) | ||

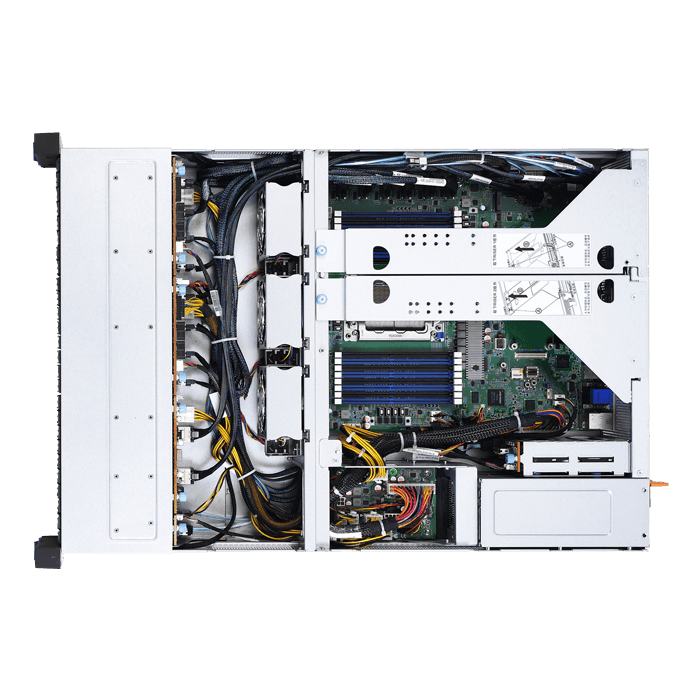

| Pre-install TYAN Riser Card
(PCI-E Gen4) |
(1) M8036-L24-3F riser card for (2) FH/HL + (1) HH/HL PCI-E Gen4 x8 slots (left) / (1) M8036-R24-3F riser card for (2) FH/HL + (1) HH/HL PCI-E Gen4 x8 slots (right) | |||
| Others | (1) PCI-E Gen3 x16 OCP 2.0 slot (conn.A+conn.B) /
*Conn. B of OCP 2.0 mezzanine is mux'd with the HH/HL PCI-E x8 slot on M8036-R24-3F riser |
|||
| LAN | Q'ty / Port | (2) GbE ports + (1) GbE dedicated for IPMI | ||
| Controller | Broadcom BCM5720 | |||
| PHY | Realtek RTL8211E | |||
| Storage | SATA | Connector | (1) SFF-8654 connector for up to (8) SATA ports | |
| Controller | Direct from AMD EPYC CPU | |||
| Speed | 6Gb/s | |||
| RAID | N/A | |||
| Additional
SATA |
Connector | (2) 7-pin SATA for (2) rear SATA drives / (2) 7-pin SATA for (2) front SATA drives | ||
| Controller | Marvell 9235 | |||
| Speed | 6Gb/s | |||
| RAID | N/A | |||
| NVMe | Connector (M.2) | (2) 22110/2280 (by PCI-E Gen4 interface) | ||
| Connector (Slim SAS) | (8) SFF-8654 for (16) NVMe ports | |||
| Graphic | Connector type | D-Sub 15-pin | ||
| Resolution | Up to 1920x1200 | |||
| Chipset | Aspeed AST2500 | |||

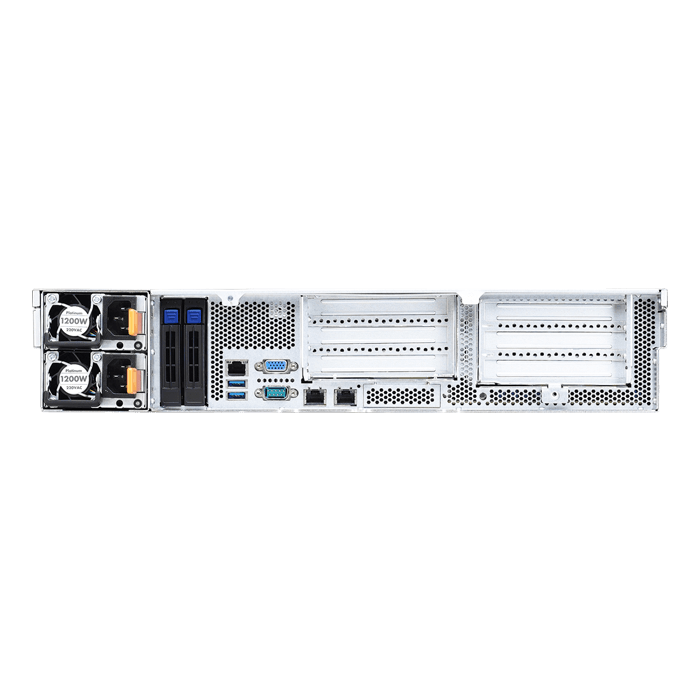

| I/O Ports | USB | (2) USB3.1 Gen1 ports (@ rear) / (2) USB3.1 Gen1 ports (via Cable) / (1) USB3.1 Gen1 port (Type-A) | ||
| COM | (1) DB-9 port (COM1) + (1) header (COM2) | |||
| VGA | (1) D-Sub 15-pin port | |||
| RJ-45 | (2) GbE ports, (1) dedicated GbE for IPMI | |||
| TPM (Optional) | TPM Support | Please refer to our TPM supported list. | ||
| System Monitoring | Chipset | Aspeed AST2500 | ||
| Temperature | Monitors temperature for CPU & memory & system environment | |||
| Voltage | Monitors voltage for CPU, memory, chipset & power supply | |||
| LED | Over temperature warning indicator / Fan & PSU fail LED indicator | |||
| Others | Watchdog timer support | |||
| Server Management | Onboard Chipset | Onboard Aspeed AST2500 | ||
| AST2500 iKVM Feature | 24-bit high quality video compression / Supports storage over IP and remote platform-flash / USB 2.0 virtual hub | |||
| AST2500 IPMI Feature | IPMI 2.0 compliant baseboard management controller (BMC) / 10/100/1000 Mb/s MAC interface | |||
| BIOS | Brand / ROM size | AMI / 32MB | ||
| Feature | Hardware Monitor / SMBIOS 3.0/PnP/Wake on LAN / Boot from USB device/PXE via LAN/Storage / Console Redirection / ACPI 6.1 / ACPI sleeping states S0, S5 / FAN speed control automatic | |||
| Operating System | OS supported list | Please refer to our AVL support lists. | ||
| Regulation | FCC (SDoC) | Class A | ||
| CE (DoC) | Class A | |||
| CB/LVD | Yes | |||
| RCM | Class A | |||
| VCCI | Class A | |||
| Operating Environment | Operating Temp. | 10° C ~ 35° C (50° F~ 95° F) | ||
| Non-operating Temp. | - 40° C ~ 70° C (-40° F ~ 158° F) | |||
| In/Non-operating Humidity | 90%, non-condensing at 35° C | |||
| RoHS | RoHS 6/6 Compliant | Yes | ||
| Package Contains | Barebone | (1) TS65A-B8036 Barebone | ||
| Manual | (1) Quick Installation Guide | |||
