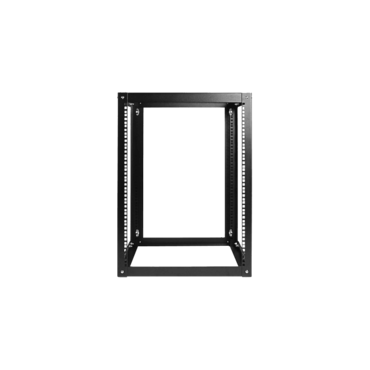

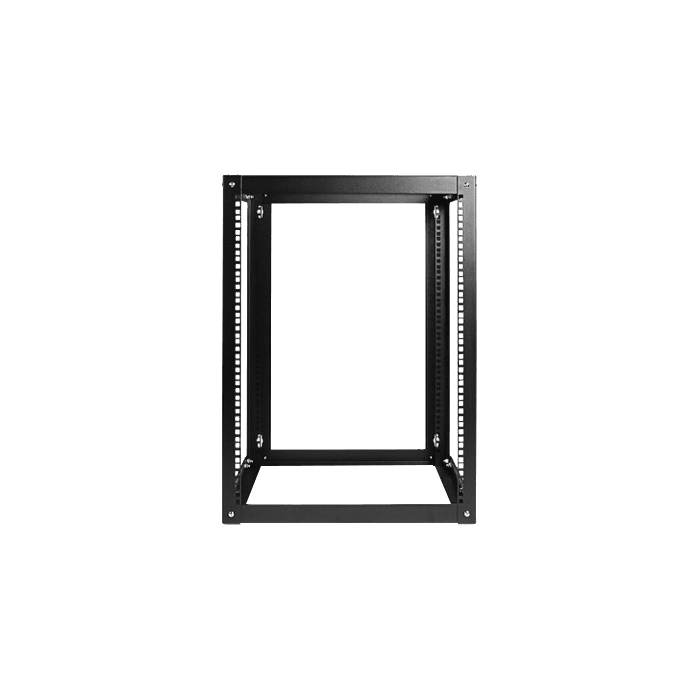

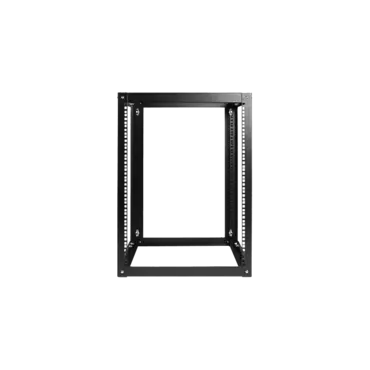

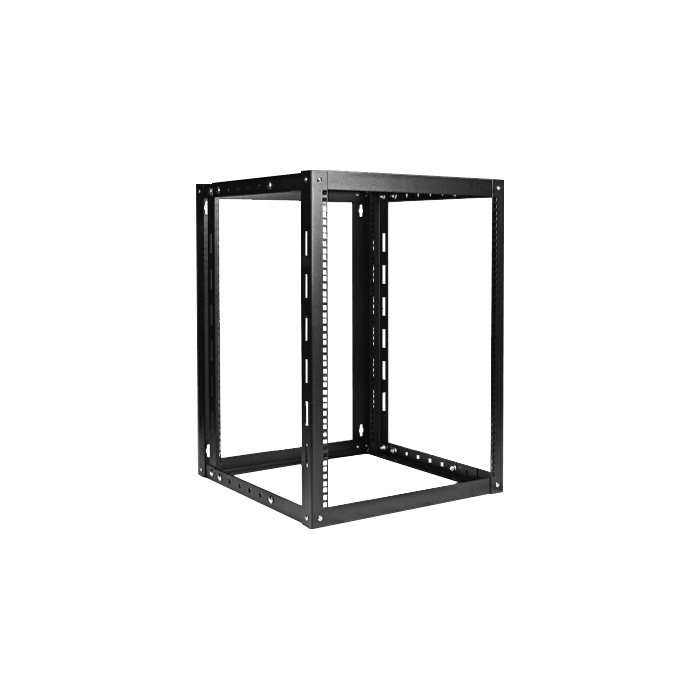

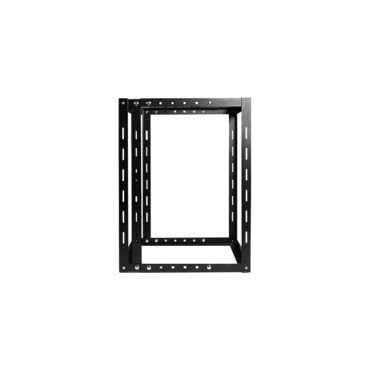

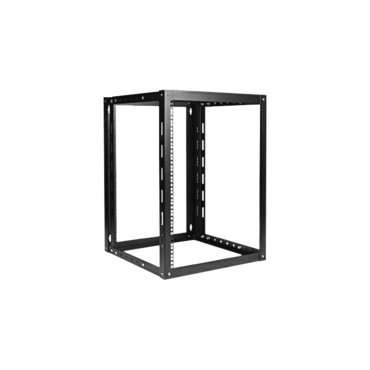

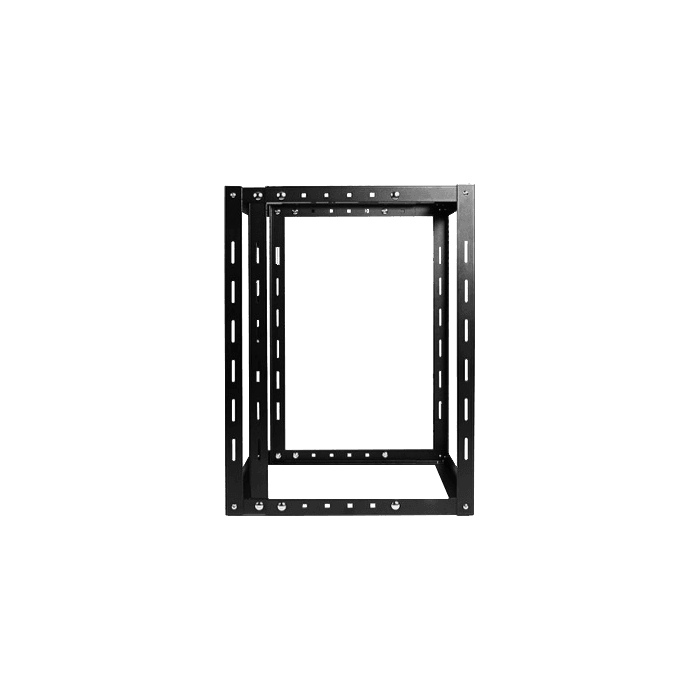

WOM1580-CM2U, 15U, 800mm, Adjustable Wallmount Server Cabinet with 2U Cable Management
Quantity:
- SKU: 12145747
- Manufacturer: ISTARUSA
- MPN: WOM1580-CM2U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$166.75
WOM1580-CM2U 15U 800mm Adjustable Wallmount Server Cabinet with 2U Cable Management
- Sturdy and Rugged Frame Structure
- Adjustable Depth, Suitable for a Wide Variety of Rackmount Equipment
- Universal Fit Most of Rackmount Chassis and Equipment
- SPCC High-Quality Cold Roll Steel
- Open Frame Construction Enables Quick Access to Rackmount System
- Easy Assemble and Disassemble
- Comes with Flat Packaging

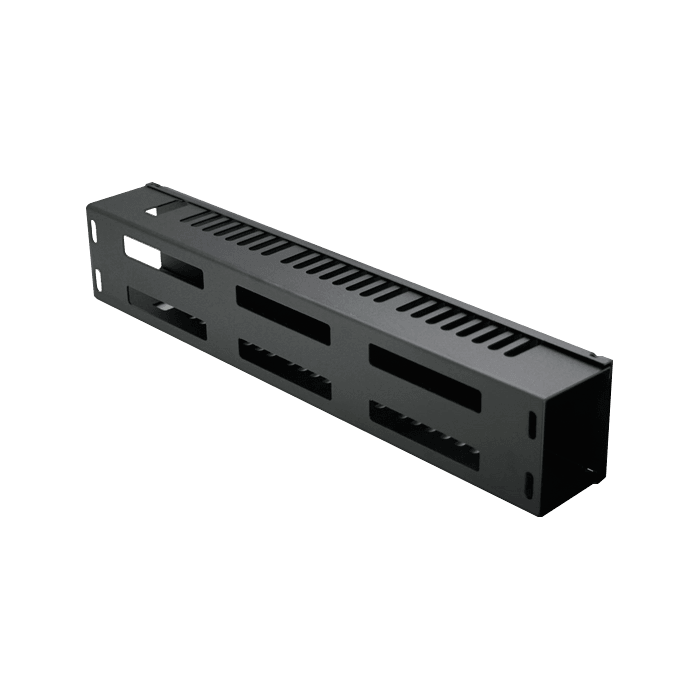

- Comes with a 2U Cable Management
| Model Number | WOM1580-CM2U |
| RoHS Compliance Version | Yes |
| Form Factor | 15U |
| Industry Standard | EIA-310 |
| Material | SPCC t:2.0mm |
| Color | Black |
| Loading Capacity | 145 lbs |
| Supported Chassis Depth | *31.5" and under |
| Dimensions (WxHxD) | 20.91" x 29.44" x 19.69"
531 mm x 748 mm x 500 mm |
| Notes | * maximum depth of rack is 800 mm (31.5"). for heavy equipment, depth adjusted to 750 mm (29.53") or 700 mm (27.56") is suggested. see drawing for details.
- minimum depth 500 mm (19.69") is w/o the rear adjustable mounting rails. with the rails, the minimum depth is 550 mm (21.65"). see drawing for details. |
