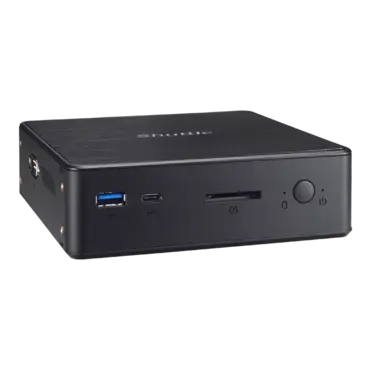

XPC Nano NC10U, Intel® Whiskeylake-U Celeron 4205U, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Intel® UHD 610 Graphics, Slim PC Barebone
Quantity:
- SKU: 15833908
- Manufacturer: SHUTTLE
- MPN: NC10U
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$254.28
| FORM FACTOR | Shuttle 0.85L Form Factor |
|---|---|
| PROCESSOR |
Intel WhiskeyLake-U Celeron 4205U 15W CPU i3-8145U, i5-8265U, i7-8565U (optional) |
| MEMORY |
2 x 260 pin DDR4 SODIMM slots, 32GB per DIMM (Max 64GB) Dual Channel DDR4 2133/2400 Mhz |
| VIDEO OUTPUT | Intel® UHD Graphics |
| AUDIO | Realtek ALC662 HD Audio |
| ETHERNET |
Built in Intel I211 support 10/100/1000Mbs Built in Realtek RTL8188EE 802.11 b/g/n Wireless LAN |
| STORAGE INTERFACE | Support SATA 6.0Gb/s bandwidth |

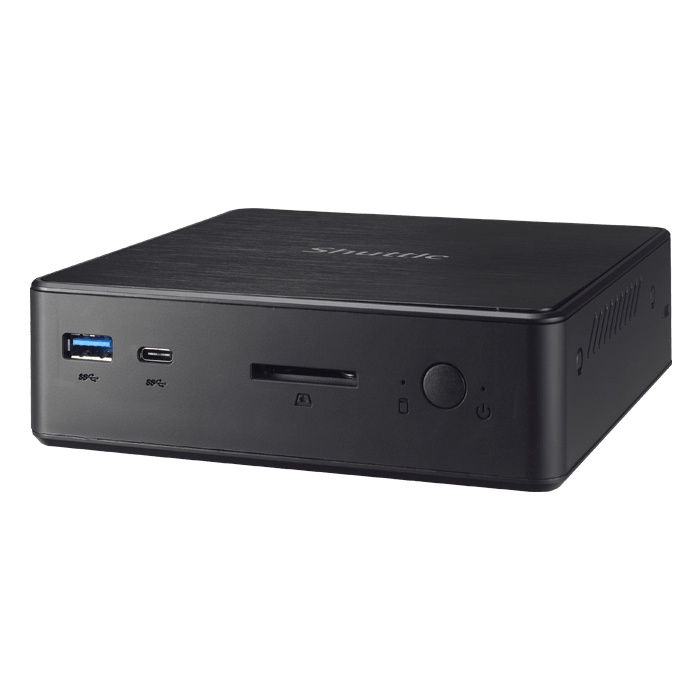

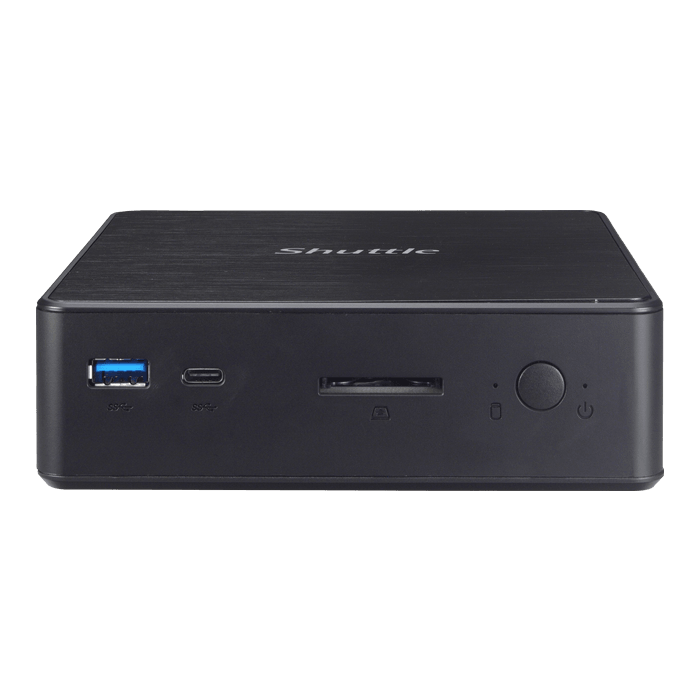

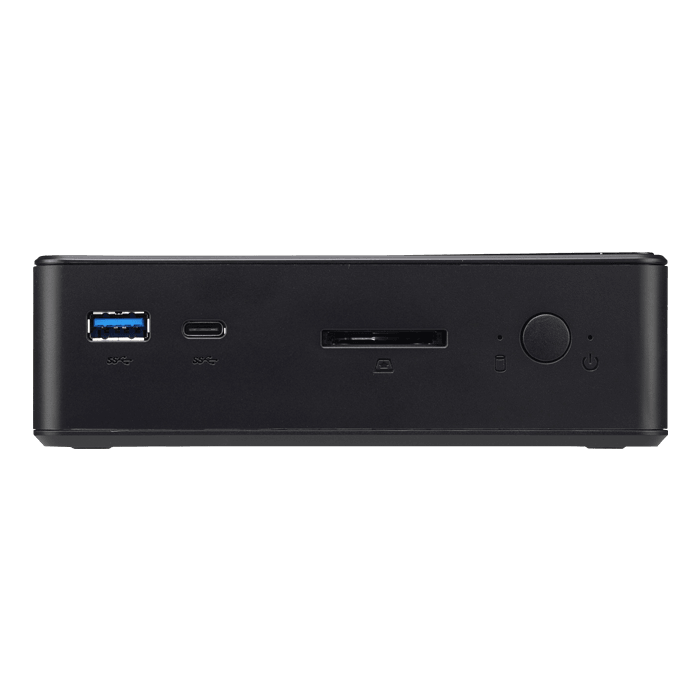

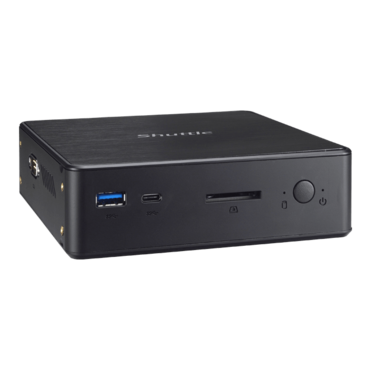

| FRONT PANEL |
(1)Power button (1)Power LED (1)HDD LED (1)USB 3.1 Gen 1 Type A (1)USB 3.1 Gen 1 Type C (1)SD cardreader |

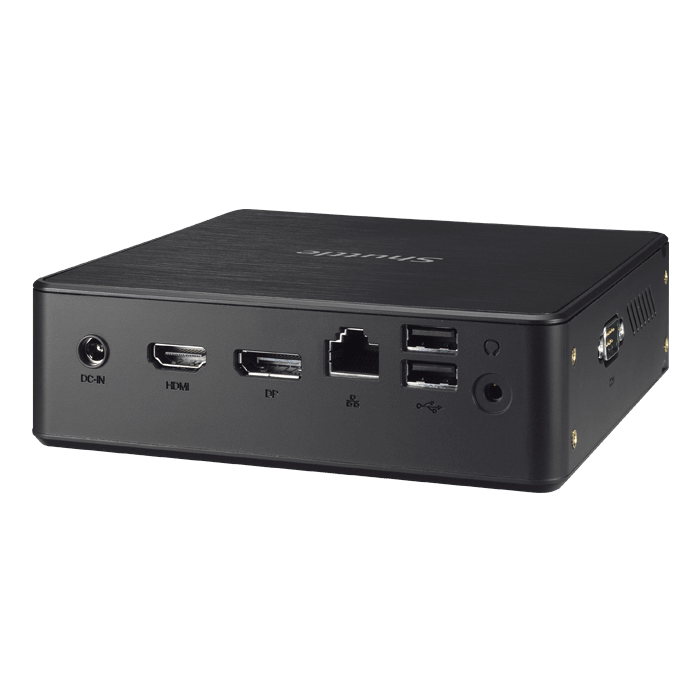

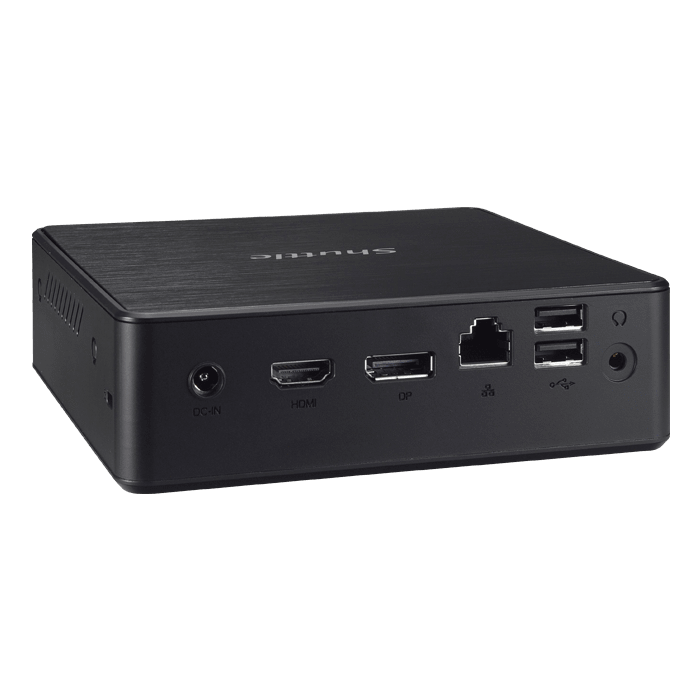

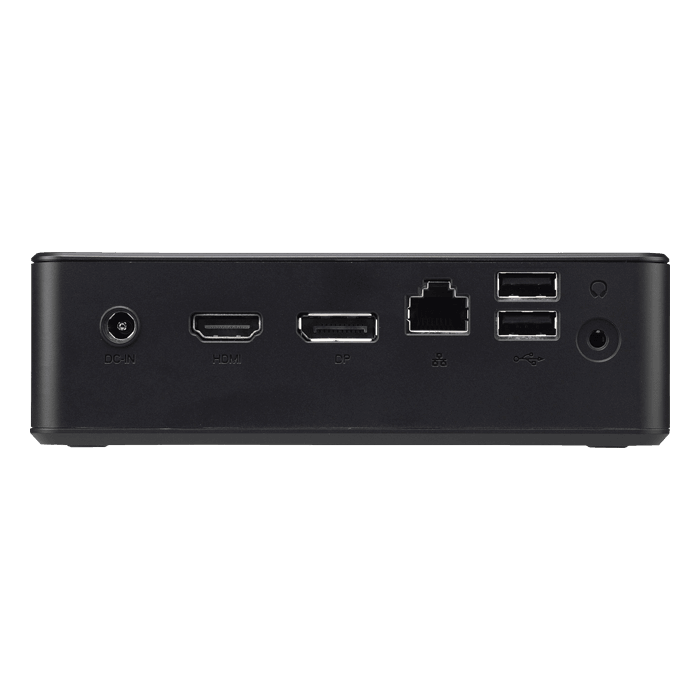

| BACK PANEL |
(1)HDMI (1)DisplayPort (2)USB 2.0 (1)RJ45 (1)DC-in Jack (1)Headphone+Mic in combo jack (1)RS232 (1)Kensington Lock |
| DRIVE BAYS | (1)2.5" 15mm SATA HDD / SSD |
| DIMENSIONS | 142(L) x 142(W) x 42(H) mm |
| POWER |
Automatics Voltage adjustment between 100 and 240VAC 50/60Hz 65 Watts (19V/3.42A), 2 pin |
| ACCESSORIES |

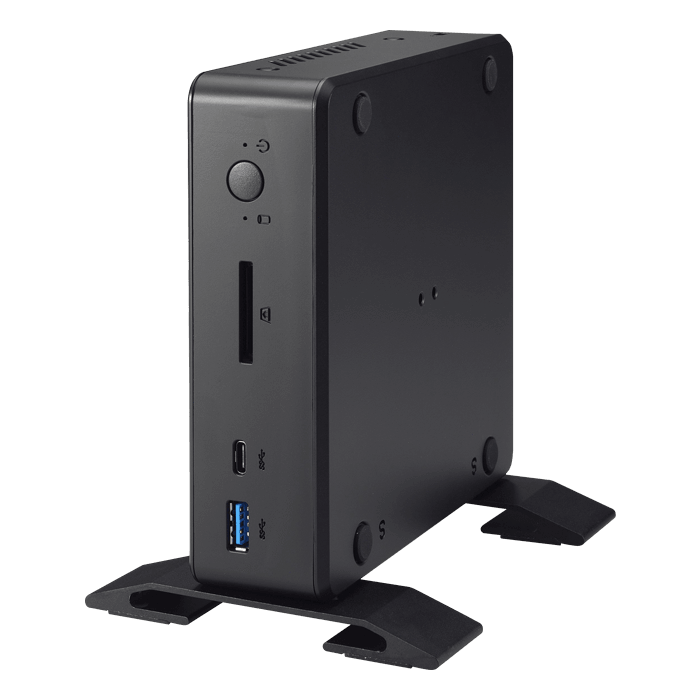

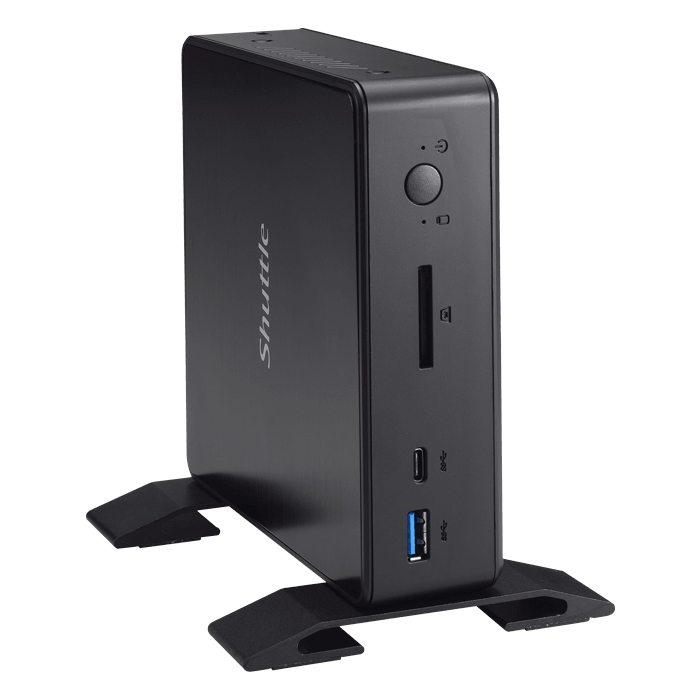

Quickguide DVD driver VESA mount Stand Power adapter and cord screw pack |
| EXPANSION SLOT |
M.2 2230 E key (WIFI pre-installed) M.2 2280 M key 2.5" 15mm SATA |
| OS SUPPORT |
Windows 10 Linux |
| OPERATING TEMPERATURE | 0°C~50°C |
