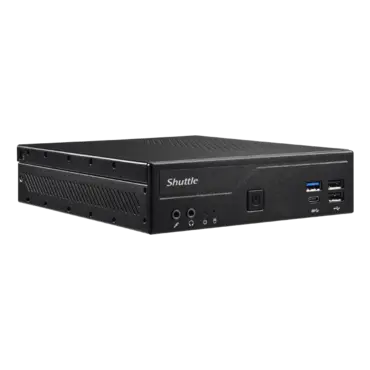

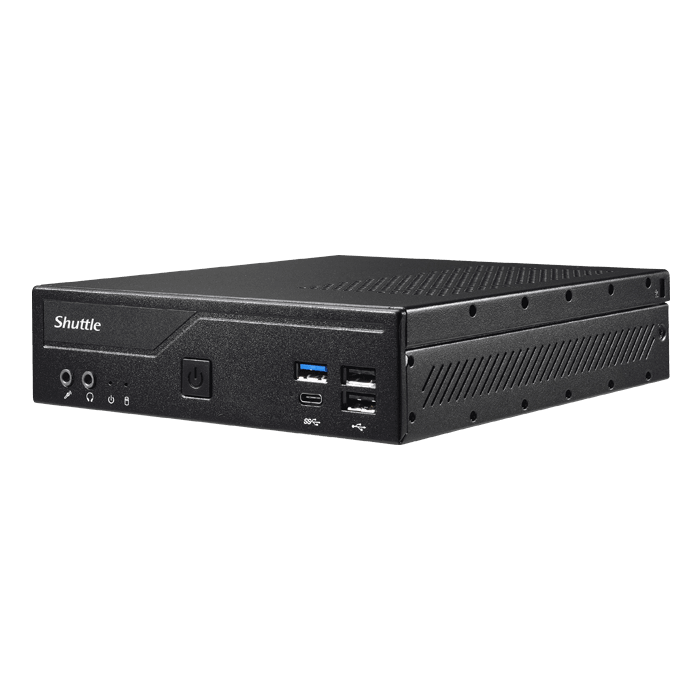

XPC Slim DH610S TAA Compliant, Intel® H610 Chipset, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Slim PC Barebone
Quantity:
- SKU: 15724243
- Manufacturer: SHUTTLE
- MPN: DH610S
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$408.90
XPC Slim DH610S TAA Compliant, Intel® H610 Chipset, 2x DDR4 SO-DIMM, M.2, 2.5" HDD/SSD, Slim PC Barebone
Shuttle XPC Slim DH610S supports Intel® 12th Gen LGA1700 Alder Lake processors and integrated UHD graphics 700 series. With a built-in HDMI 2.0 and a DisplayPort, users can easily configure two 4K displays. Multiple I/O ports are included, the model provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, an Intel® 1GbE LAN, and two M.2 expansion slots to deliver exceptional productivity and a reliable operation. It is affordable and a perfect option for simple digital signage, office, and thin-client use.
Shuttle XPC Slim DH610S supports Intel® 12th Gen LGA1700 Alder Lake processors and integrated UHD graphics 700 series. With a built-in HDMI 2.0 and a DisplayPort, users can easily configure two 4K displays. Multiple I/O ports are included, the model provides four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, an Intel® 1GbE LAN, and two M.2 expansion slots to deliver exceptional productivity and a reliable operation. It is affordable and a perfect option for simple digital signage, office, and thin-client use.
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR |
Support Intel 12/13th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor * BIOS v2.01 and updated version support Raptor Lake (13th) CPU |
| CHIPSET | Intel H610 Express chipset |
| MEMORY |
2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz |
| VIDEO OUTPUT |
HDMI 2.0 x 1+ DisplayPort x 1, Dual video outputs 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek High Definition Audio |
| ETHERNET |
(1)Intel I219 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |

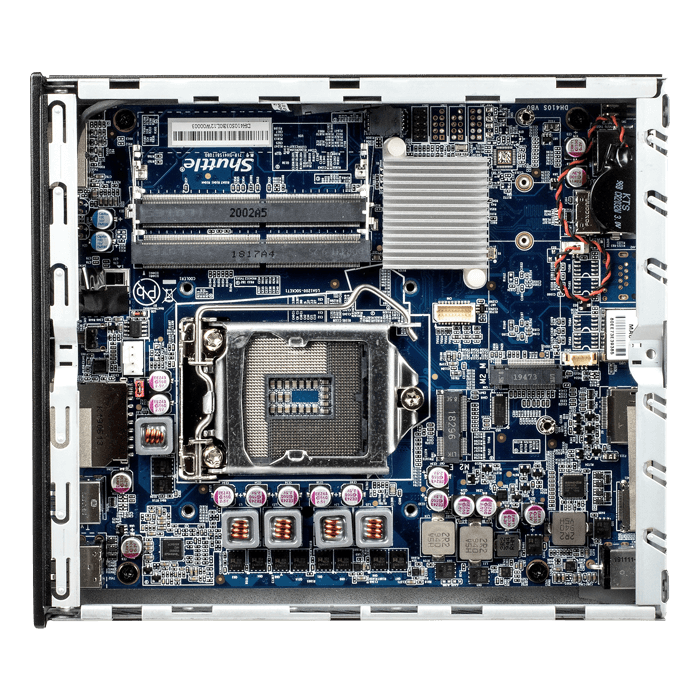

| ONBOARD CONNECTORS |
(1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header |

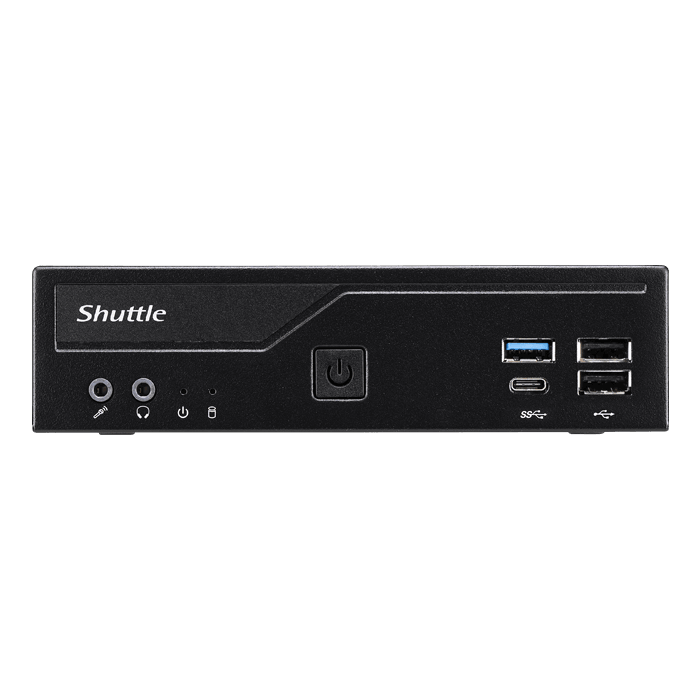

| FRONT PANEL |
(2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 2.0 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED |

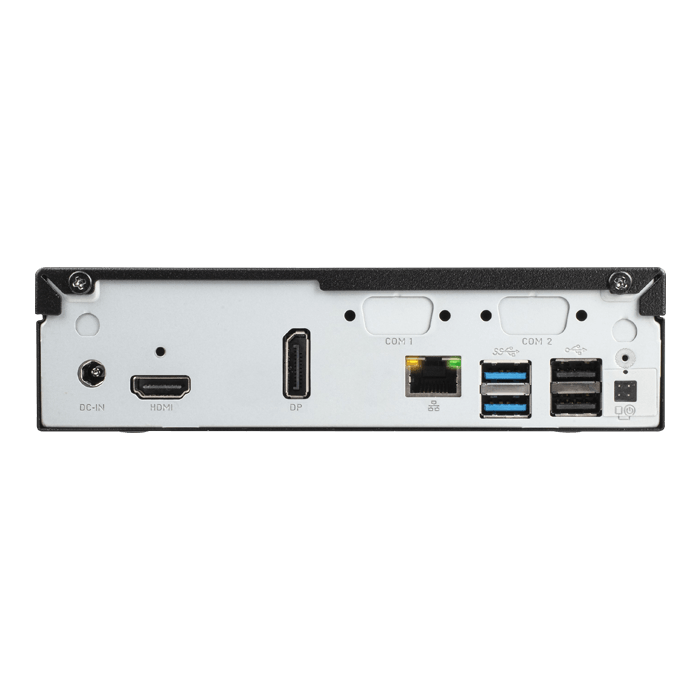

| BACK PANEL |
(1) RJ45 Gigabit LAN port w/LED (1) HDMI port (1) Display port (2) USB 3.2 Gen1 ports (2) USB 2.0 ports (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER |
120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES |
XPC Multilanguage Quick User Guide XPC DVD Driver Power cord Thermal Grease HDD Screw pack 120W adapter |
| EXPANSION SLOT |
(1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT |
Windows 10/11 64 bit O.S Linux |
| OPERATING TEMPERATURE | 0°C~50°C |
