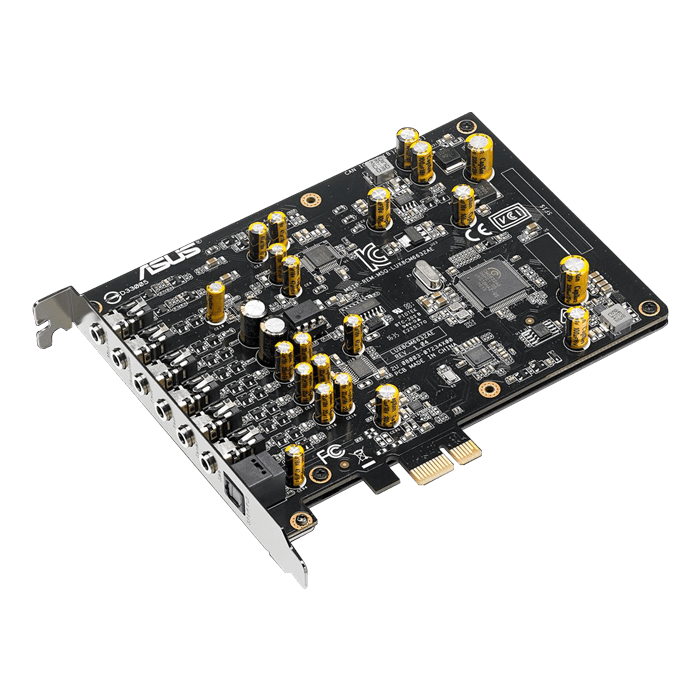

Xonar AE, 7.1 Channels, 24-bit / 192KHz,110 dB SNR, PCIe Sound Card
Quantity:
- SKU: 11619230
- Manufacturer: ASUS
- MPN: XONAR AE
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$76.99
Xonar AE, 7.1 Channels, 24-bit / 192KHz,110 dB SNR, PCIe Sound Card
Xonar AE 7.1 PCIe gaming sound card with 192kHz/24-bit Hi-Res audio quality, 150ohm headphone amp, high-quality DAC, and exclusive EMI back plate
- 192kHz/24-bit Hi-Res audio and 7.1-channel, 150ohm headphone amp
- High-quality ESS DAC with 110dB signal-to-noise ratio (SNR)

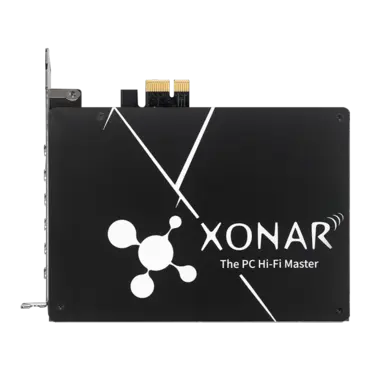

- Exclusive EMI back plate provides noise shielding for exceptionally clear audio
- Sonic Studio enables full audio control via an intuitive, one-page interface
- Perfect Voice technology eliminates background noise for clear in-game communication
| Audio Interface | PCI Express |
| Audio Performance | Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
110 dB Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) : 108 dB Input Signal-to-Noise Ratio (A-Weighted) : 103 dB Output THD+N at 1kHz (Front-out) : <0.00158 %(-96 dB) Input THD+N at 1kHz : <0.0022 %(-93 dB) Frequency Response (-3dB, 24bit/192KHz input) : 10 Hz to 65 KHz Output/Input Full-Scale Voltage : |
| Chipset | Audio Processor :C-Media USB2.0 6632AE High-Definition Sound Processor (Max. 192KHz/24bit) |
| Digital-to-analog Converter(DAC) | ESS ES9023P*1 (112dB DNR, Max. 192KHz/24bit)
Cirrus Logic CS4245*1 (104dB DNR, Max. 192KHz/24bit) Cirrus Logic CS4361*1 (103dB DNR, Max. 192KHz/24bit) |
| Sample Rate and Resolution | Analog Playback Sample Rate and Resolution :
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit Analog Recording Sample Rate and Resolution : 44.1K/48K/88.2K/96KHz @ 16bit/24bit S/PDIF Digital Output : 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit ASIO 2.2 Driver Support : 44.1K/48K/96K/192KHz @ 24bit/32bit |

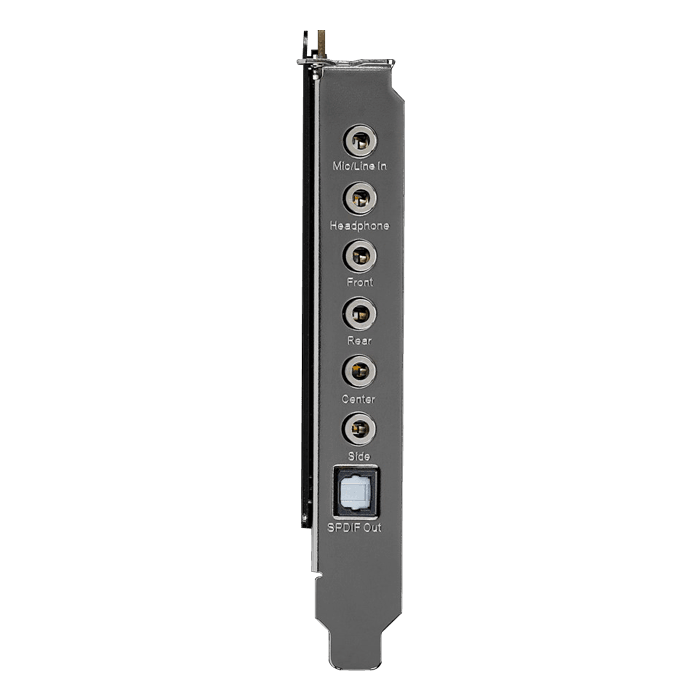

| Connectivity | Analog Output
5 x 3.5 mm jack (1/8") (Headphone out /Front out/Side out/Center-Subwoofer out/Rear out) Analog Input 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) Digital 1 x S/PDIF out (1 x Optical (Toslink)) |
| Special Features | Sonic Studio |
| Operating System | Windows® 10 , 32bit/64bit
Windows® 8.1 , 32bit/64bit Windows® 7 , 32bit/64bit Please update your BIOS and drivers to the latest version to support Windows 7 |
| Accessories | S/PDIF optical adaptors x 1
Driver CD x 1 Quick start guide x 1 |
