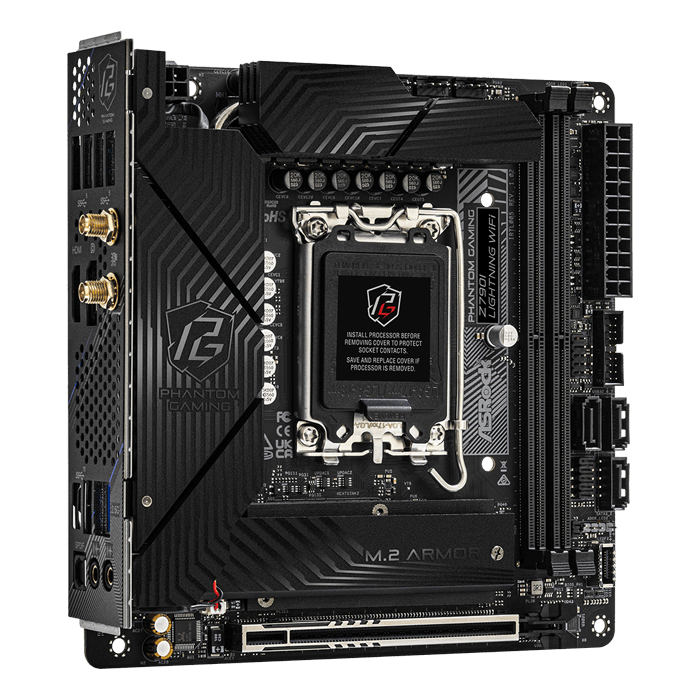

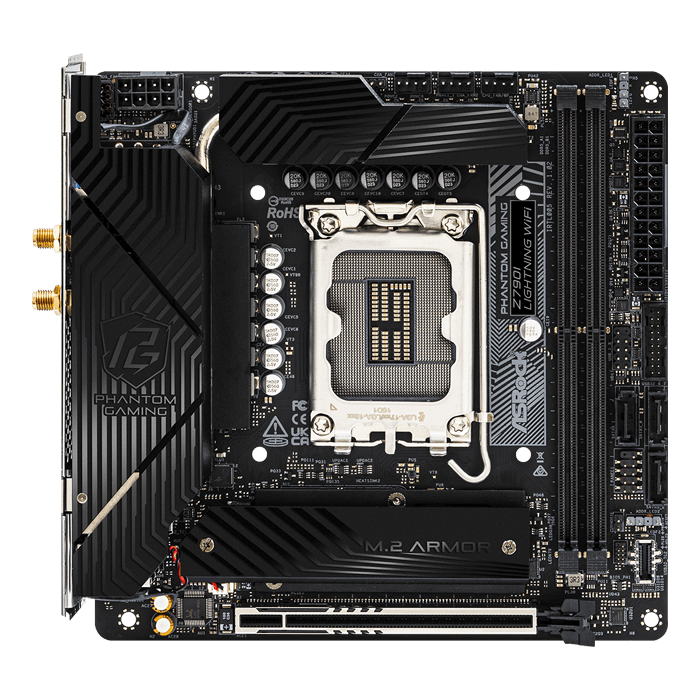

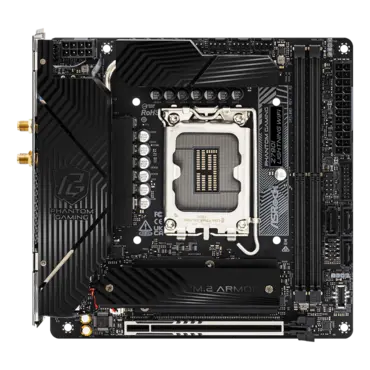

Z790I Lightning WiFi, Intel® Z790 Chipset, LGA 1700, Mini-ITX Motherboard
Quantity:
- SKU: 17661060
- Manufacturer: ASROCK
- MPN: Z790I LIGHTNING WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$302.43
Z790I Lightning WiFi, Intel® Z790 Chipset, LGA 1700, Mini-ITX Motherboard
FAST MYSTERIOUS UNBEATABLE
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors
- 14+1+1 Phase Power Design, 110A SPS for VCore+GT
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 8600+ (OC) - 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 2 Hyper M.2 (PCIe Gen4 x4), 2 SATA3
- 1 USB 3.2 Gen2 Type-C (Rear)
1 USB 3.2 Gen2 Type-A (Rear)
1 USB 3.2 Gen1 Type-C (Front)
6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front)
2 USB 2.0 (Front) - Phantom Gaming 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
| Unique Feature | Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - Server-Grade Low-Loss PCB - 14+1+1 Power Phase, SPS for VCore+GT with Enlarged Heatsink Armor - Flexible Integrated I/O Shield Ultrafast Gaming - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) |
| Chipset | - Intel® Z790 |
| Memory | - Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8600+(OC)* - Max. capacity of system memory: 96GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 *1DPC 1R Up to 8600+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 7000+ MHz (OC), 5200 MHz Natively. |
| BIOS | - 128Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Wireless LAN | - 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 160MHz with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 + High speed class II - Supports MU-MIMO *Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) * Supports PCIe riser cards to extend one x16 slot to two x8 slots Supports NVMe SSD as boot disks |
| Storage | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 3 x SATA3 6.0 Gb/s Connectors * Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID | - Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 5 and RAID 10 |
| USB | Chipset: - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen2 Type-C (Rear) - 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front) - 1 x USB 3.2 Gen1 Type-C (Front) - 1 x USB 2.0 (Front) * All USB ports support ESD Protection |
| Connector | - 2 x Addressable LED Headers* - 1 x Thermistor Cable Header - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis Fan Connectors (4-pin)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Support in total up to 5V/3A, 15W LED Strip ** CPU_FAN1/WP supports the fan power up to 2A (24W). CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. *** CHA_FAN1 and CHA_FAN2 support the fan power up to 1A (12W). |

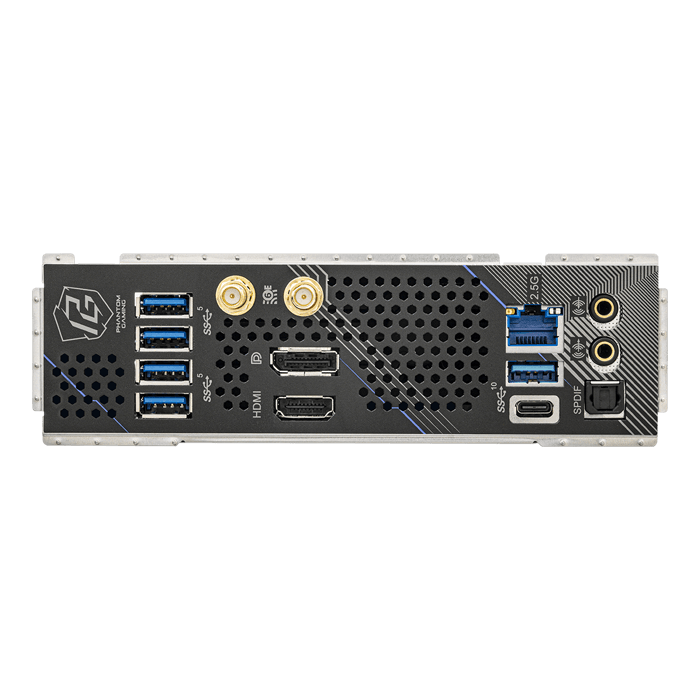

| Rear Panel I/O | - 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 3.2 Gen1 Ports - 1 x RJ-45 LAN Port - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Easy RAID Installer *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories | - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas - 1 x Screw for M.2 Socket - 1 x Thermistor Cable |
| Form Factor | - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 8 Layer PCB - 2oz Copper PCB |
| OS | - Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
