ZenWiFi XT9 (W-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 2402 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Mesh System
Quantity:
- SKU: 15169801
- Manufacturer: ASUS
- MPN: XT9 (W-2-PK)
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$317.38
ZenWiFi XT9 (W-2-PK), IEEE 802.11ax, Tri-Band 2.4 / 5GHz / 5GHz, 574 / 2402 / 4804 Mbps, 3xRJ45, 1x USB 3.0, Retail Wireless Mesh System

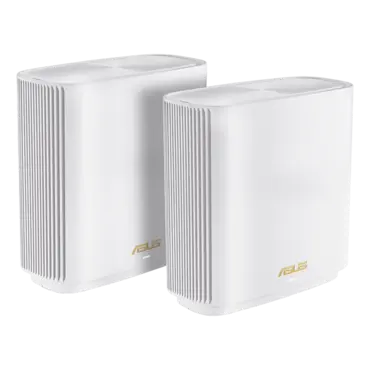

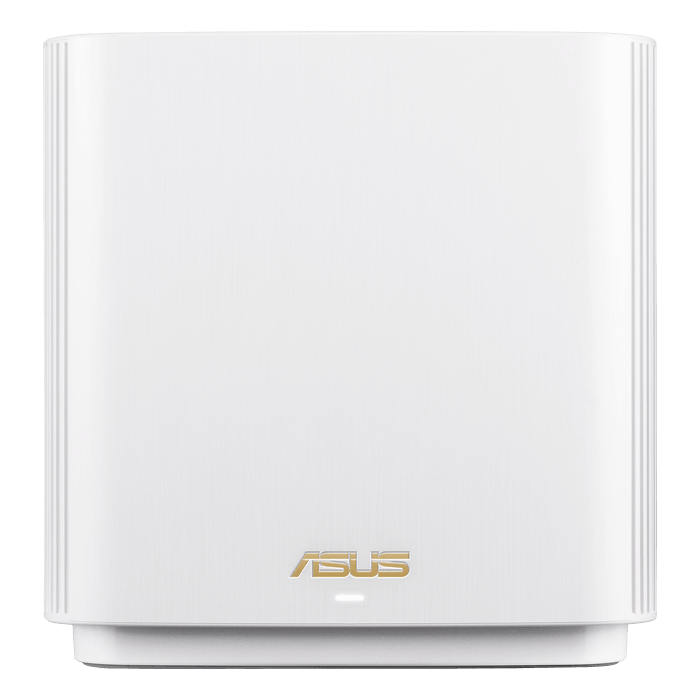

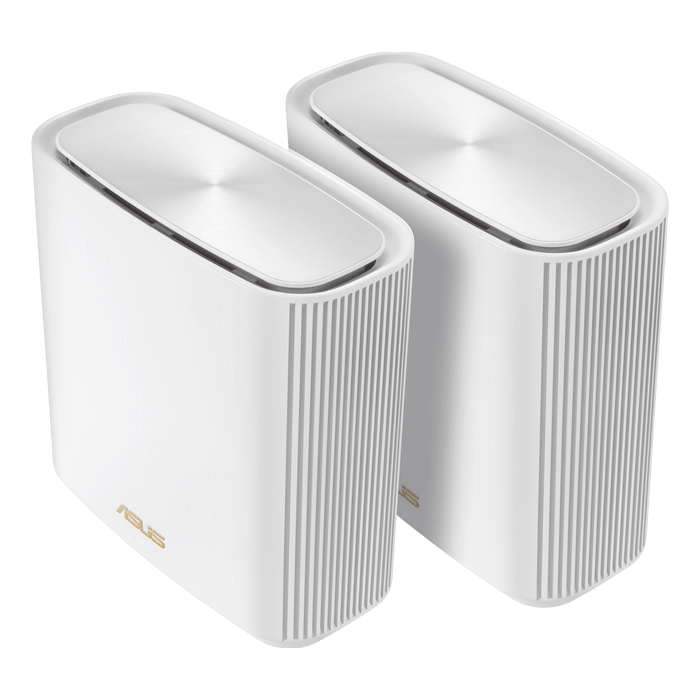

ASUS ZenWiFi XT9 (W-2-PK) (90IG0740-MA1B4V). The ASUS ZenWiFi XT9 mesh system consists of a pair of ASUS AX7800 tri-band WiFi 6 mesh routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections for your streaming videos, gaming and all other smart IoT gadgets.
- Banish WiFi Dead Zone—Tri-band mesh WiFi system with unique antenna placement delivers strong WiFi to every corner of your home, providing total wireless speed of 7800Mbps
- Ultrafast Wi-Fi 6 Technology— With OFDMA and MU-MIMO, ZenWiFi XT9 enables more efficient, stable, and faster transmission even when multiple devices are transmitting data at the same time
- Hassle Free Control – 3 steps setup and easy management with ASUS Router App
- Always Up-to-date Protection— The lifetime free network security powered by Trend Micro™ makes sure your privacy on connected devices is protected
- AiMesh Supported– Mix and match ZenWiFi with AiMesh-compatible routers to form powerful and flexible whole-home WiFi system
| Model | ASUS ZenWiFi XT9 |
| Model Name | XT9 (W-2-PK) - Pack of 2 White |
| Network Standard |
IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) WiFi 6 (802.11ax) IPv4 IPv6 |
| Product Segment | AX7800 ultimate AX performance : 574+2402+4804Mbps |
| AX technology | Yes |
| Data Rate |
802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 300 Mbps WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps WiFi 6 (802.11ax) (5GHz-1) : up to 2402 Mbps WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps |
| Antenna | Internal antenna x 6 |
| Transmit/Receive |
2.4GHz 2x2 5GHz-1 2x2 5GHz-2 4x4 |
| Processor | 1.7 GHz quad-core processor |
| Memory |
256 MB Flash 512 MB RAM |
| Boosts speed |
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions. |
| Operating Frequency | 2.4G Hz, 5 GHz-1, 5 GHz-2 |

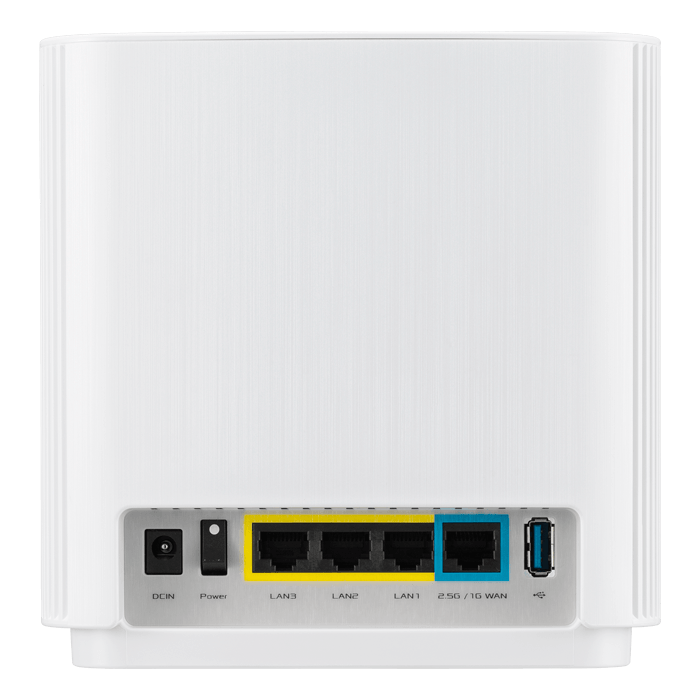

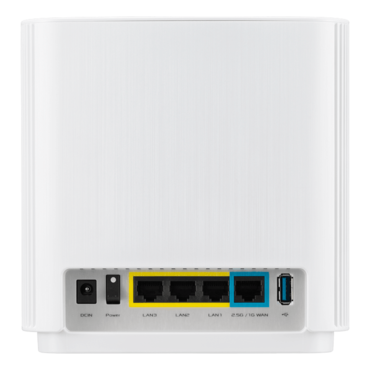

| Ports |
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3 USB 3.2 Gen 1 x 1 |
| Button | WPS Button, Reset Button, Power Switch |
| LED Indicator | Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 3 A current |
| Package content |
ZenWiFi XT9 RJ-45 cable Power adapter Warranty card Quick start guide |
| Product Weight (g) | 740g |
| Remark | Content and color may vary in different regions and packages. |
| AiMesh |
AiMesh Primary AiMesh router AiMesh node |
| Router APP | ASUS Router APP |
| Alexa | Support Alexa skill |
| AiProtection |
AiProtection Pro Router Security Assessment Malicious site blocking Two-Way IPS Infected Device Prevention and Blocking |
| Parental Control |
Parental Control Parental Control Customized Internet schedule |
| Traffic Control |
Adaptive QoS Bandwidth Monitor Bandwidth limiter Traffic Monitor Real-time traffic monitor Wired Traffic Monitor Wireless Traffic Monitor Traffic Analyzer Website history |
| Wireless |
IPv6 Wi-Fi Encryption : WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support UTF-8 SSID Guest Network Maximum Guest Network rule : Max 9 rules Guest Network Connection time limit WPS WiFi MAC address filter Maximum MAC filters : Max 64 rules Wireless scheduler Airtime fairness RADIUS Client Universal beamforming Explicit beamforming |
| WAN |
Dual WAN DMZ DDNS Let's Encrypt Safe browsing DNS-over-TLS |
| LAN |
IGMP snooping IPTV LAN Link Aggregation |
| VPN |
Instant Guard VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Fusion VPN Server WireGuard |
| USB application |
File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4 Safely Remove disk AiCloud Download master AiDisk Media Server Time Machine Samba Server FTP Server Shared Folder privileges |
| Administration |
Operating mode : Wireless router mode Access point mode Firewall Maximum Firewall keyword filter : Max 64 rules Maximum Firewall network service filter : Max 32 rules Maximum Firewall URL filter : Max 64 rules Wake on LAN (WOL) Diagnosis tools Feedback system System log New Device Connect Notification Login Captcha Connection Diagnosis Security Scan Auto Firmware Update |
