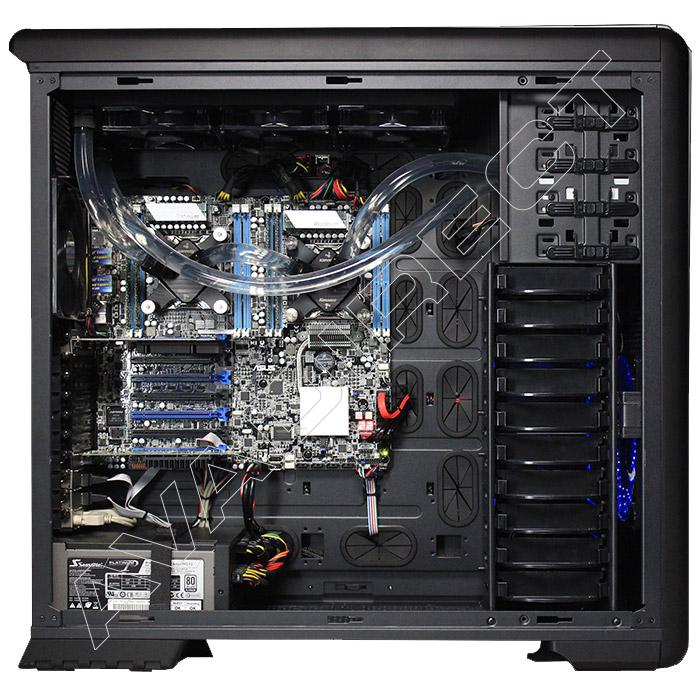

Most workstations have an emphasis on CPU, RAM, or GPU power. This Custom Dual-CPU Xeon E5 Workstation has a unique emphasis on our Custom Liquid Cooling setup! Using the newly-certified Dual-Xeon liquid cooling configurator, this end-user took advantage of the cooling capabilities, provided by Swiftech CPU water blocks, Thermaltake's dual-bay pump/reservoir combo, and XSPC's 360mm radiator by ensuring the dual-XEON CPUs remain cool, and relatively quiet under load. Furthermore, this reduces a significant amount of ambient heat that would normally be dumped into the case. This gives the end-user the option to explore an aggressive multi-GPU setup in the future, without having to worry about internal cooling. Considering the Intel Xeon E5-2687W processors were used, this setup really could not get any better toward cooling super high-end CPUs!

Most workstations have an emphasis on CPU, RAM, or GPU power. This Custom Dual-CPU Xeon E5 Workstation has a unique emphasis on our Custom Liquid Cooling setup! Using the newly-certified Dual-Xeon liquid cooling configurator, this end-user took advantage of the cooling capabilities, provided by Swiftech CPU water blocks, Thermaltake's dual-bay pump/reservoir combo, and XSPC's 360mm radiator by ensuring the dual-XEON CPUs remain cool, and relatively quiet under load. Furthermore, this reduces a significant amount of ambient heat that would normally be dumped into the case. This gives the end-user the option to explore an aggressive multi-GPU setup in the future, without having to worry about internal cooling. Considering the Intel Xeon E5-2687W processors were used, this setup really could not get any better toward cooling super high-end CPUs!

Custom assembly SKU 8100303

Custom Water Cooled PC

CONFIGURATION

See what components went into this custom computer build:

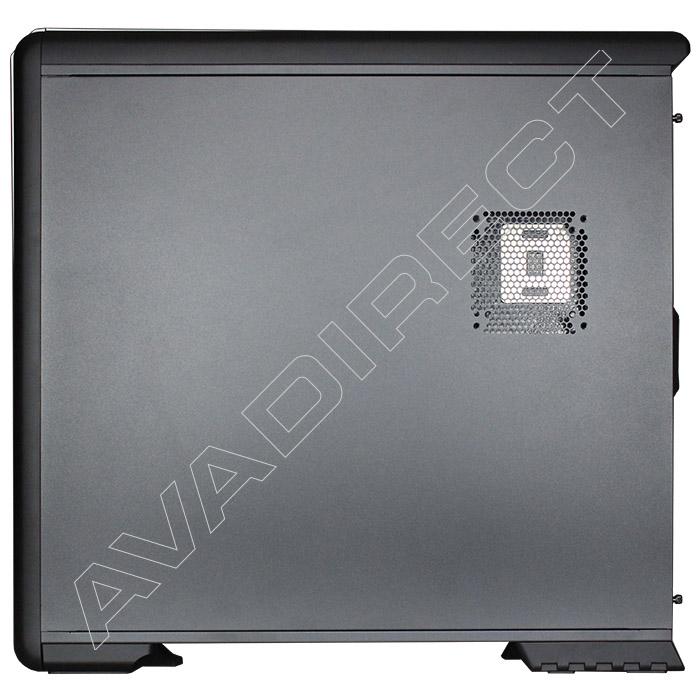

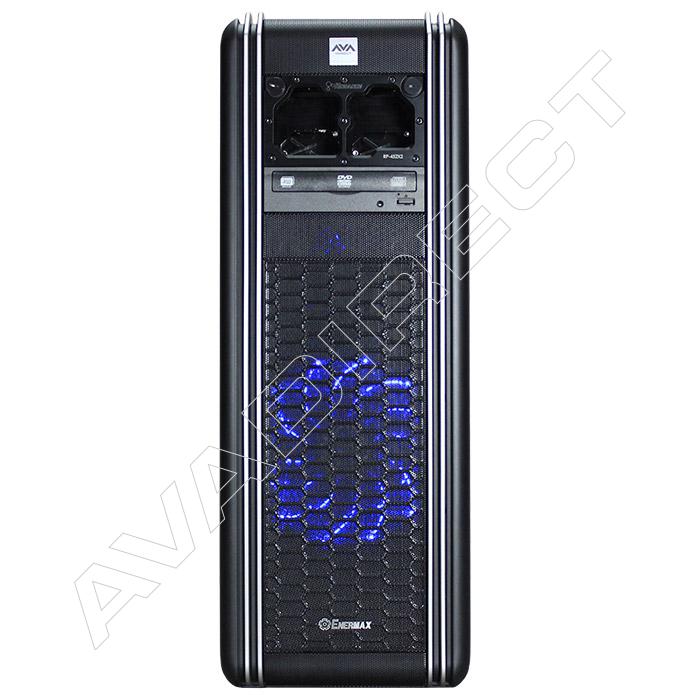

Fulmo GT Black Full Tower Case, HPTX / EATX, 10 slots, No PSU, SECC

Computer Cases

ENERMAX Fulmo GT Black Full Tower Case, HPTX / EATX, 10 slots, No PSU, SECC

Dual CPU Liquid Cooling Kit, Single Loop, 360mm Single Radiator (3x120mm fans required)

Custom CPU Liquid Cooling

AVADIRECT Dual CPU Liquid Cooling Kit, Single Loop, 360mm Single Radiator (3x120mm fans required)

PrimoFlex Advanced LRT Crystal Clear Tubing, 1/2in ID, 3/4in OD, 8ft

All Liquid Cooling Accessories

PRIMOCHILL PrimoFlex Advanced LRT Crystal Clear Tubing, 1/2in ID, 3/4in OD, 8ft

Ice Intensified™ Non-Conductive Clear Coolant, 64 oz

All Liquid Cooling Accessories

PRIMOCHILL Ice Intensified™ Non-Conductive Clear Coolant, 64 oz

3 x R4 120mm Case Fan, 2000 RPM, 69 CFM, 19 dBA, No LED

All Cooling Fans

COOLER MASTER 3 x R4 120mm Case Fan, 2000 RPM, 69 CFM, 19 dBA, No LED

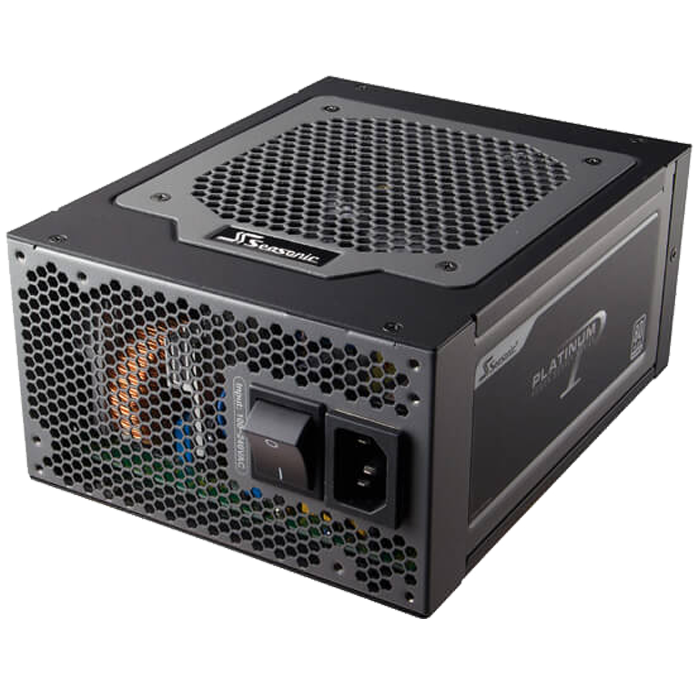

Platinum Series Platinum-1000 1000W, 80 PLUS Platinum, Full Modular, ATX Power Supply

Desktop Power Supplies

SEASONIC Platinum Series Platinum-1000 1000W, 80 PLUS Platinum, Full Modular, ATX Power Supply

Z9PE-D8 WS, LGA2011 /2, Intel® C602, DDR3-2133 (O.C.) 256GB/64GB ECC/UECC /8, PCIe x16 SLI CF /4+2*, SATA 6Gb/s RAID 5 /6, 3Gb/s /8, USB 3.0 /4, HDA, FW /2, GbLAN /2, SSI EEB, Retail

Motherboards

ASUS Z9PE-D8 WS, LGA2011 /2, Intel® C602, DDR3-2133 (O.C.) 256GB/64GB ECC/UECC /8, PCIe x16 SLI CF /4+2*, SATA 6Gb/s RAID 5 /6, 3Gb/s /8, USB 3.0 /4, HDA, FW /2, GbLAN /2, SSI EEB, Retail

2 x Xeon® E5-2687W Eight-Core Processor 3.1 - 3.8GHz TB, LGA2011, 8 GT/s QPI, 20MB L3 Cache, DDR3-1600, EIST EM64T HT VT-d VT-x XD, 32nm, 150W, Retail w/o Fan

Server Processors

INTEL 2 x Xeon® E5-2687W Eight-Core Processor 3.1 - 3.8GHz TB, LGA2011, 8 GT/s QPI, 20MB L3 Cache, DDR3-1600, EIST EM64T HT VT-d VT-x XD, 32nm, 150W, Retail w/o Fan

PK-3, 5g, 11.2 (W/m-C), Nano Aluminum High-Grade, Thermal Compound

All Thermal Compound

Prolimatech Inc. PK-3, 5g, 11.2 (W/m-C), Nano Aluminum High-Grade, Thermal Compound

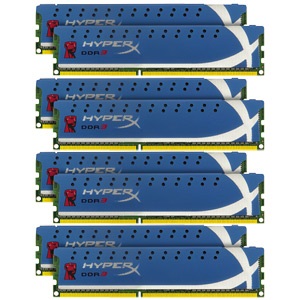

16GB (8 x 2GB) XMP HyperX Genesis Blue PC3-12800 DDR3 1600MHz CL9 1.65V SDRAM DIMM, Non-ECC

Desktop Memory

KINGSTON 16GB (8 x 2GB) XMP HyperX Genesis Blue PC3-12800 DDR3 1600MHz CL9 1.65V SDRAM DIMM, Non-ECC

GeForce® GT 520 810MHz, 1GB GDDR3 1000MHz, PCIe x16, 2x DVI+mini-HDMI, Retail

Video Cards

EVGA GeForce® GT 520 810MHz, 1GB GDDR3 1000MHz, PCIe x16, 2x DVI+mini-HDMI, Retail

256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

Solid State Drives

CRUCIAL 256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

Solid State Drives

CRUCIAL 256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

Solid State Drives

CRUCIAL 256GB M4 SSD, MLC Marvell 88SS9174, 500/260 MB/s, 2.5-Inch, SATA 6 Gb/s, Retail

RAID 0 - Striping (Minimum 2 HDD's Required)

Storage Subsystem Configuration

RAID 0 - Striping (Minimum 2 HDD's Required)

iHAS124 Black 24x DVD±RW Dual-Layer Burner, SATA, OEM

5.25 Inch Optical Drives

LITE-ON iHAS124 Black 24x DVD±RW Dual-Layer Burner, SATA, OEM

Standard Wiring with Precision Cable Routing and Tie-Down

Cables

Standard Wiring with Precision Cable Routing and Tie-Down

Windows 7 Ultimate 64-bit Edition w/ SP1, OEM w/ Media

All Operating Systems

MICROSOFT Windows 7 Ultimate 64-bit Edition w/ SP1, OEM w/ Media

200, Reliable and durable, Wired USB, Black, Retail Keyboard

Keyboards and Bundles

MICROSOFT 200, Reliable and durable, Wired USB, Black, Retail Keyboard

Standard Shipping (UPS or Fedex)

Service Items

Standard Shipping (UPS or Fedex)
