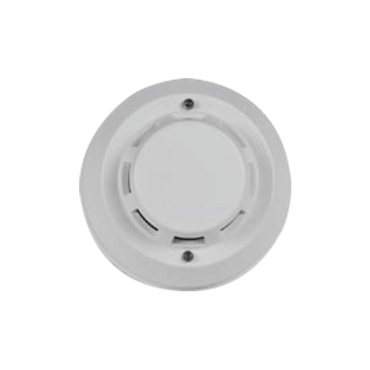

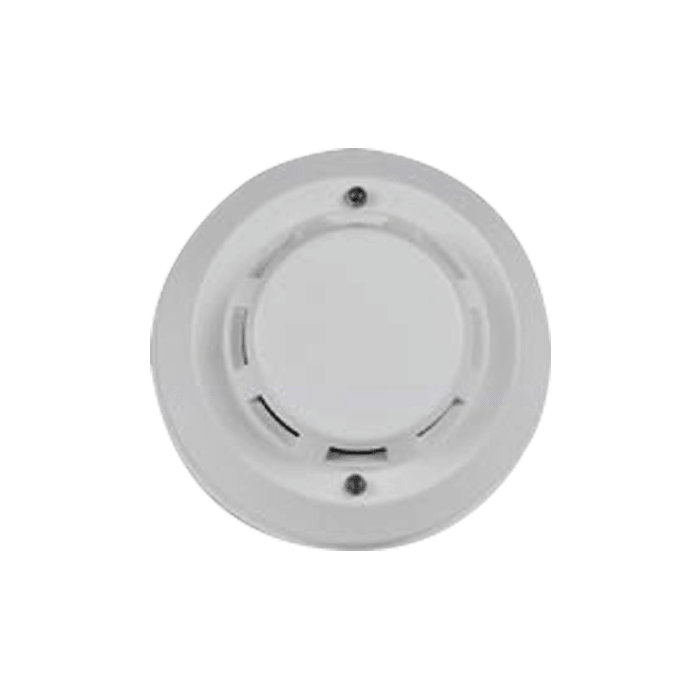

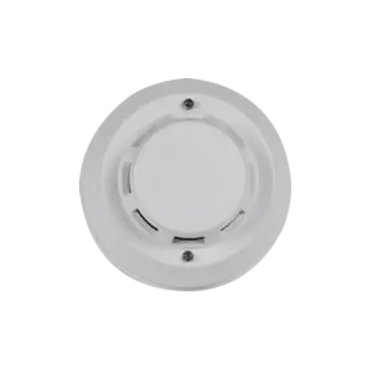

e-sds-celcp-v2 Low-Cost Smoke Detection Sensor / CE Approved
Quantity:
- SKU: 14661109
- Manufacturer: NTI
- MPN: e-sds-celcp-v2
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$46.57
e-sds-celcp-v2 Low-Cost Smoke Detection Sensor / CE Approved
Low-Cost Smoke Detection Sensor / CE Approved
Low-Cost Smoke Detection Sensor / CE Approved
- For warning of smoke.
- Photoelectric smoke detector.
- Smoke sensitivity: 0.5 dB/m ±0.1 dB/m.
-
Selectable latching feature.
- Configure the sensor to auto-reset after an alarm trigger, or require a power cycle to unlatch the trigger.
-
Compatible with E-MINI-LXO.
- Interfaces with the E-MINI-LXO via the digital input sensor ports.
-
Screw terminal:
- To connect to the digital inputs use a 22 AWG 2-wire cable. Connect the other end to the sensor screw terminal.
- Operating temperature: 14 to 122°F (-10 to 50°C).
- Maximum cable length: 1,000 ft (305 m).
- Includes 12V/1A power supply.
- Regulatory approvals: CE, RoHS.
